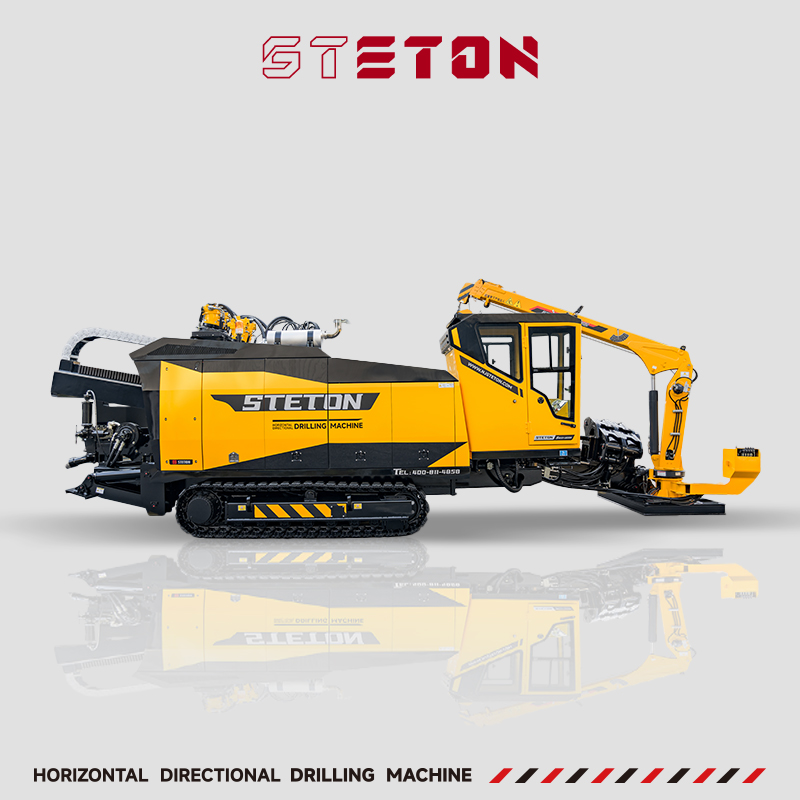

Home / Products / Horizontal Directional Drilling Machine / S1350 HORIZONTAL DIRECTIONAL DRILLING MACHINE


Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


  • S1350

  • 思特通


Engine Power KW 264/2200 Size(L*W*H) mm 12300x2700x2650

Max Thrust force

KN 1350/2000 Weight T 28

Max Pullback force

KN 1350/2000

Diameter of drilling rod

mm φ 114or127

Max Torque

N.M 55000

Length of drilling rod

m 6

Max Rotary speed

rpm 100

Max diameter of pullback pipe

mm φ 1500(Soil Depended)

Max Moving speed of power head

m/min 38

Max construction length

m 1000(Soil Depended)

Max Mud pump flow

L/min 1000

Incidence Angle

° 11~22

Max Mud pressure

Mpa 10±0.5

Climbing Angle

° 15

Main Performance Characteristics

1.The push-pull and rotation systems both adopt the American Sauer electric control closed-loop system, which is efficient, stable, and reliable. The rotation utilizes French original imported Poclain motors, which increase efficiency by over 20% compared to traditional hydraulic systems, reducing heat generation by the system and saving energy by 20%.

2.Independently developed PLC control system, electric control handle, all LCD screen display, and pressure protection system.

3.Equipped with a Cummins special engine for engineering machinery, providing powerful performance.

4.The power head can be reinforced, with a maximum push-pull force of 2000kN, providing assurance for large-scale engineering construction.

5.Adopts a four-link adjustment main beam structure, greatly increasing the incidence angle range while ensuring that the crawler of the drilling rig does not leave the ground at large angles, improving safety performance.

6.Wireless remote control walking system ensures safe walking and transitioning.

7.The loading and unloading of drill rods adopt a fully supported mechanical arm mechanism, making the process convenient and efficient, significantly reducing the labor intensity of construction personnel and improving work efficiency.

8.Suitable for φ114 or φ127×6000mm drill rods, with a compact body size and convenient transportation.

9.Major components use internationally renowned hydraulic components, significantly improving the quality, performance, and reliability of the product.

10.Circuitry adopts a wire harness design, with low failure rate and easy maintenance.

11.Utilizes rack and pinion push-pull mechanism for high efficiency, stable operation, and easy maintenance and upkeep.

12.The tracks adopts steel tracks with rubber pads, capable of bearing high loads and suitable for traveling on various roads, facilitating transportation in urban areas.
