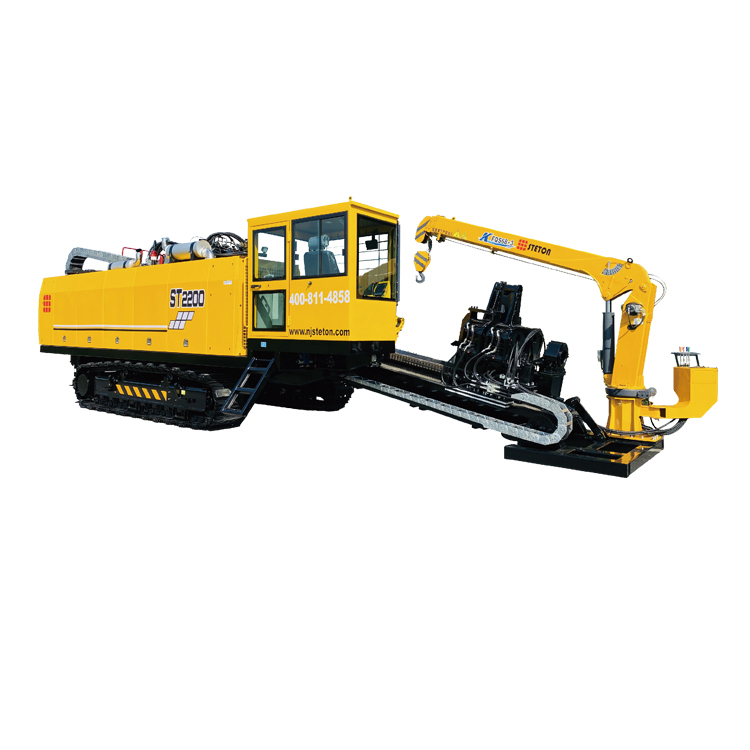

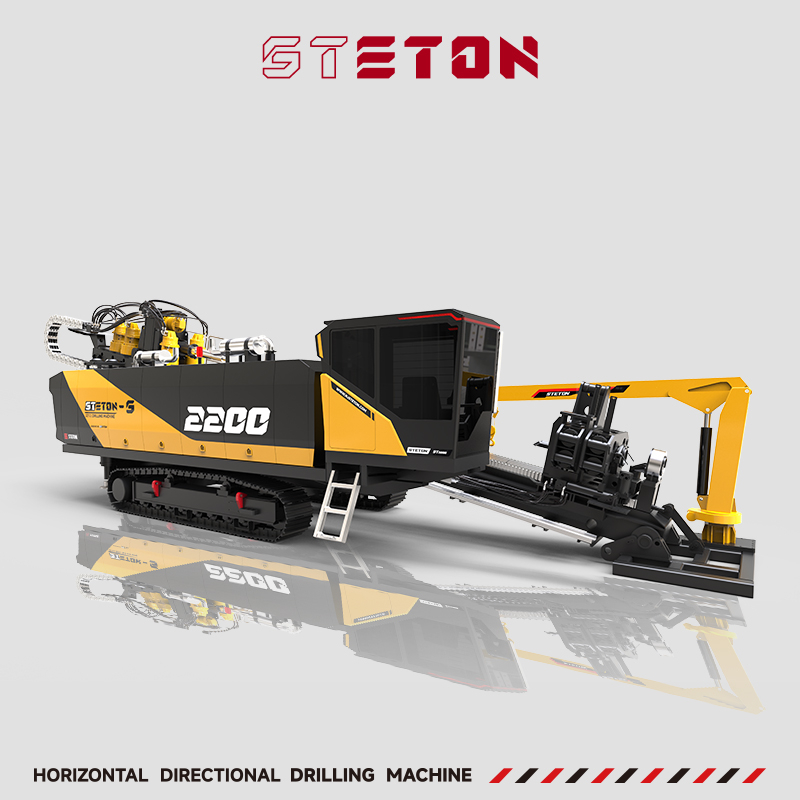

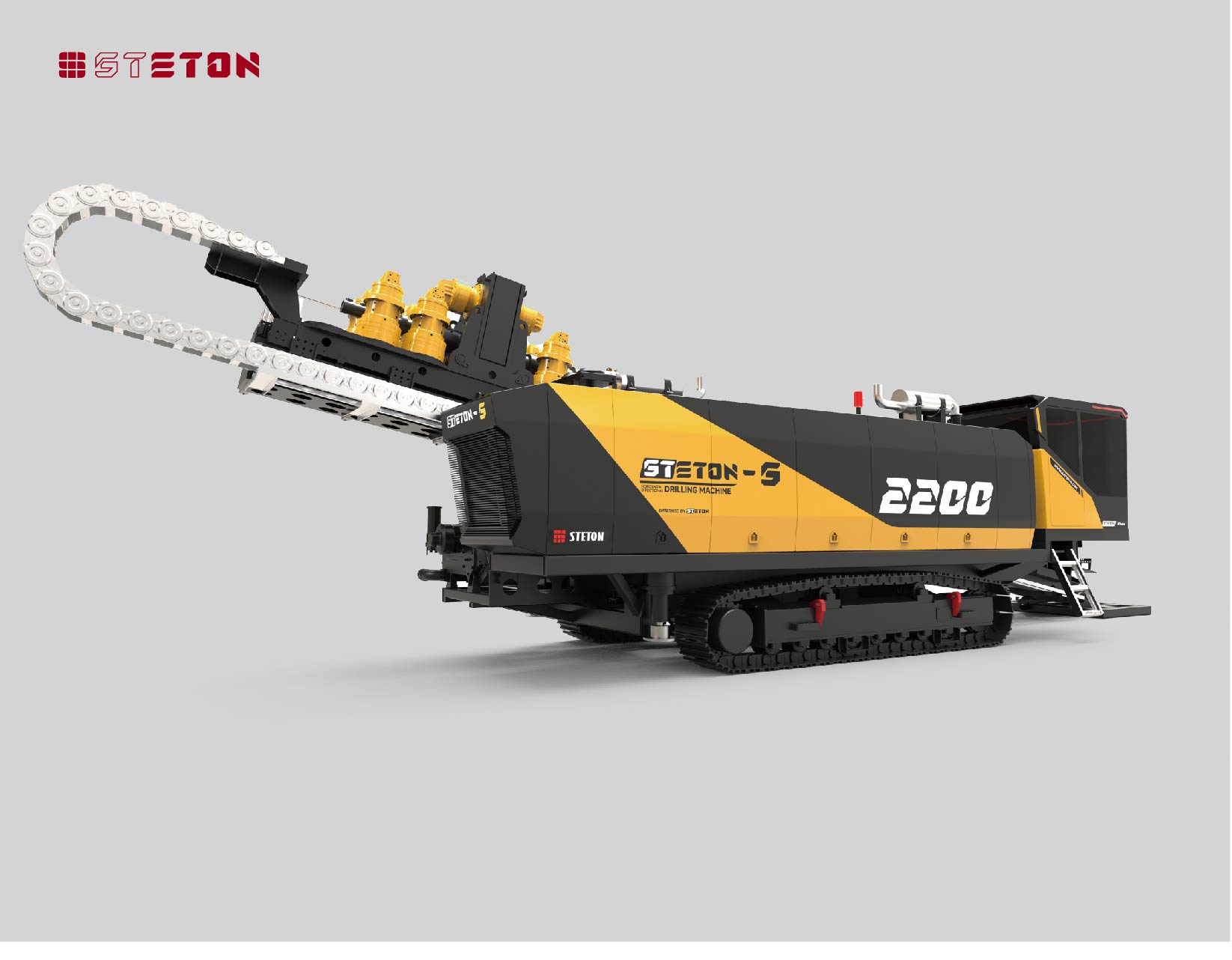

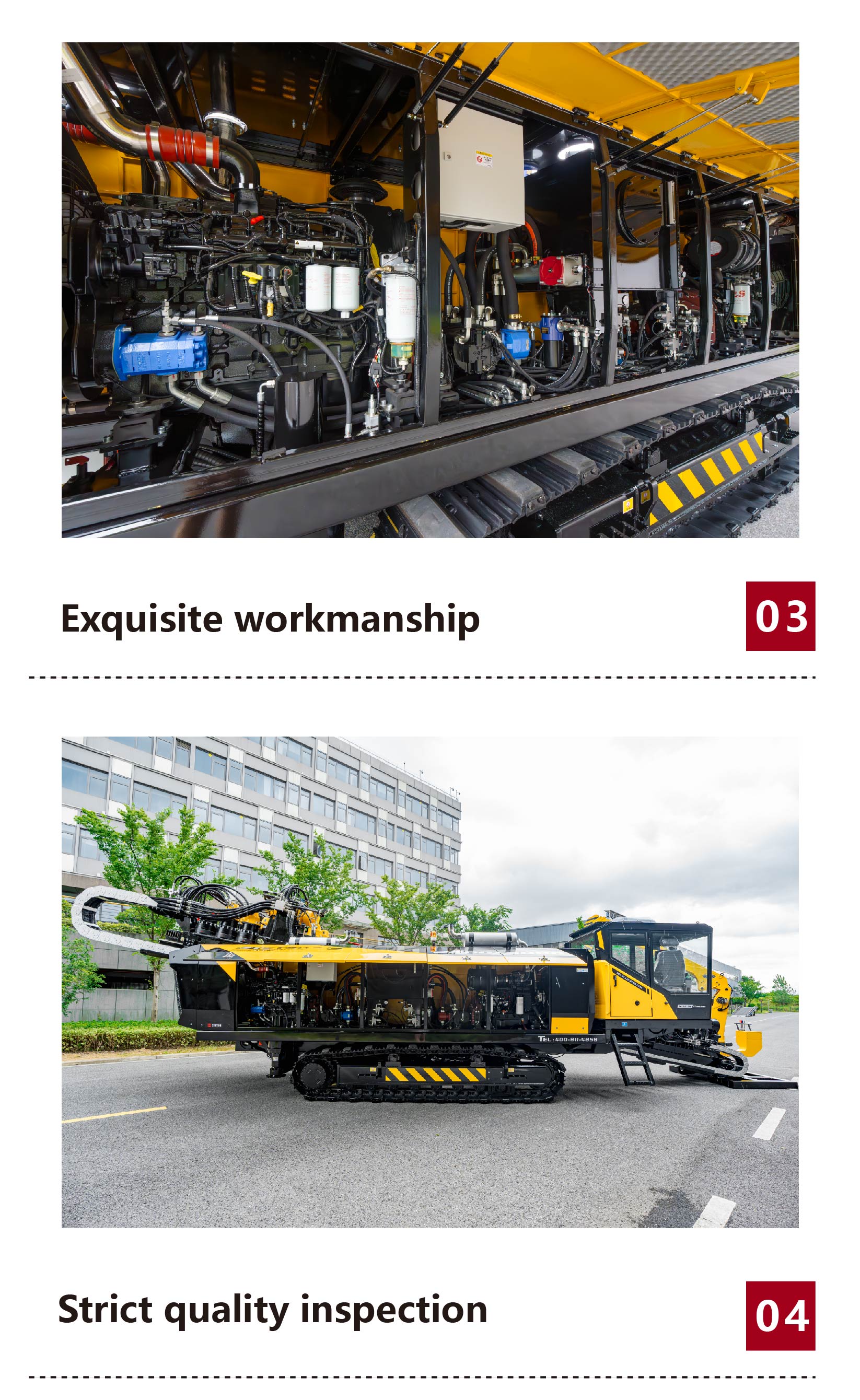

ST2200 HORIZONTAL DIRECTIONAL DRILLING MACHINE

Availability:
Quantity:

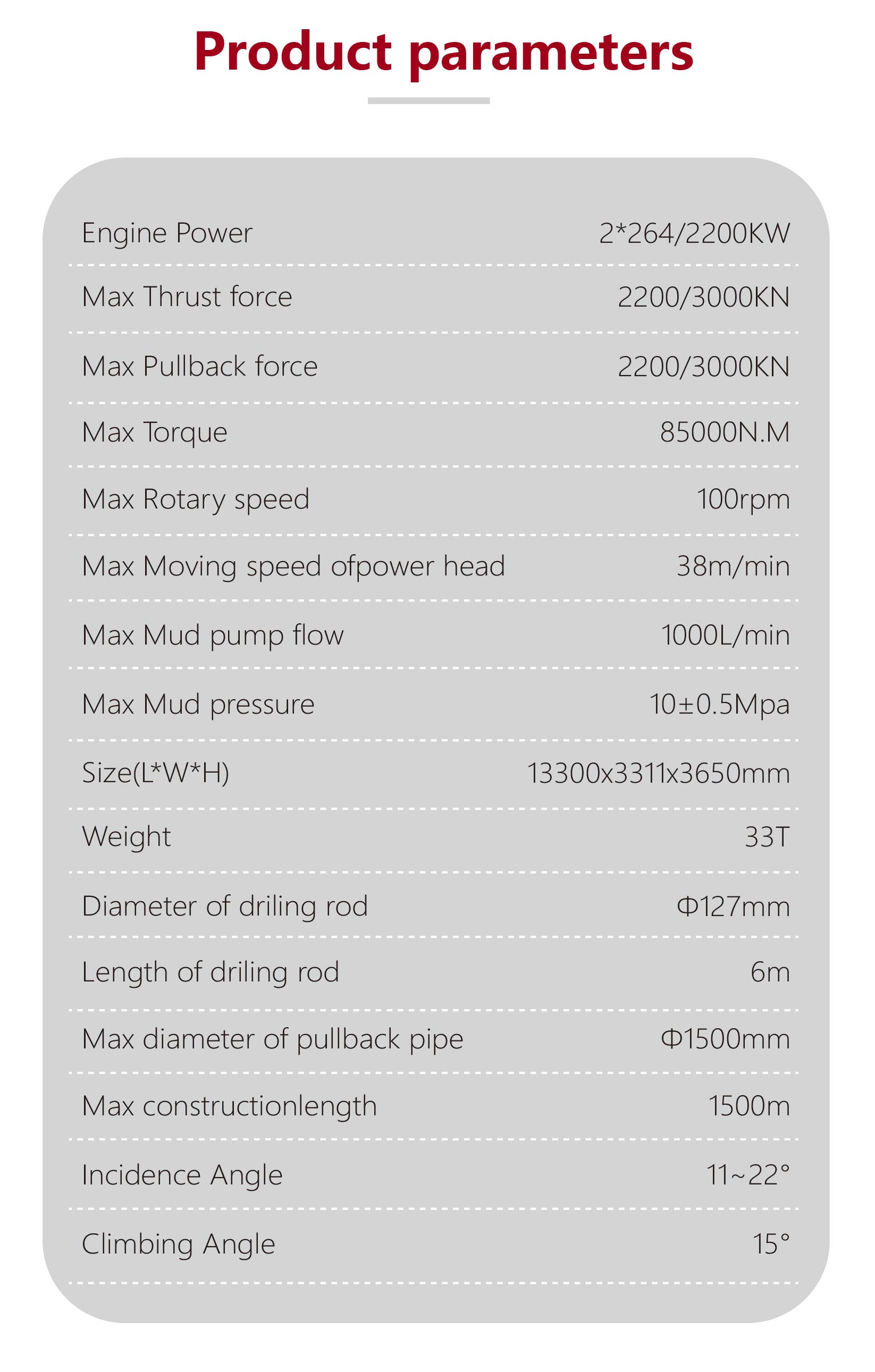

Specification

Engine Power KW 2*264/2200 Size(L*W*H) mm 12700x3000x3100

Max Thrust force

KN 2200/3000 Weight T 33

Max Pullback force

KN 2200/3000

Diameter of drilling rod

mm φ 127

Max Torque

N.M 85000

Length of drilling rod

m 6

Max Rotary speed

rpm 100

Max diameter of pullback pipe

mm φ 1500(Soil Depended)

Max Moving speed of power head

m/min 38

Max construction length

m 1500(Soil Depended)

Max Mud pump flow

L/min 1000

Incidence Angle

° 11~22

Max Mud pressure

Mpa 10±0.5

Climbing Angle

° 15


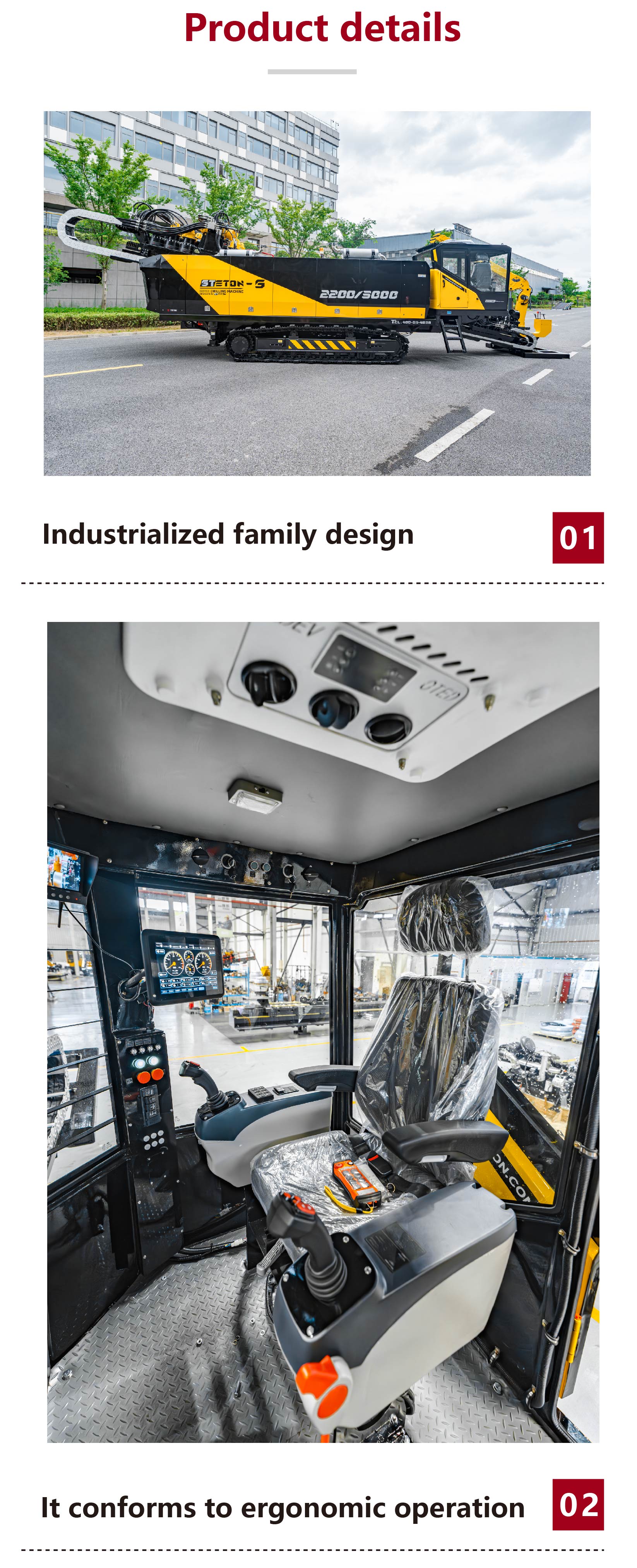

Main Performance Characteristics

1 .The rotation and thrust is equipped with USA Sauer closed-circuit system, which is efficient, stable and reliable. Rotation and thrust motor is originally imported French Poclain brand which is famous all over the world, which increases work efficiency more than 20%, and totally saves about 20% energy compared with traditional system.

2.Developed design own PLC control system, electric control joystick, LCD with pressure control system.

3.It is equipped with two Cummins engine specialized in engineering machinery with strong power.

4. Driving head reserves reinforced power (push & pull force). Push & pull force can be increased to 3000KN, which ensures the safety of the big diameter construction

5. Four bar linkage luffing structure is adopted for main girder, which highly increases entry angle range and ensures the large angle and rig tracks are not off ground, having improved the safety performance.

6. Wireless-control walking system can be used to ensure the safety in the process of walk, transfer and load & unload.

7. Full lifted manipulator is convenient for loading and unloading drill rod, which can greatly reduce the workers labor intensity, and improve work efficiency.

8. With φ127x6000mm drill rod, the machine can be used in medium field area, meeting the requirement for high efficiency construction in small place.

9. Main hydraulic components are from the international first-class hydraulic component manufacturer, which greatly improve the reliability of the product performance and safety.

10. Electric design is reasonable with low failure rate, which is easy to maintain.

11. Push & pull using rack and pinion structure, which is good for high efficiency, long lifespan, stable work, and maintenance is also convenient.

12.Steel track with rubber plate can be loaded heavily and walks on all kinds of roads as well.
