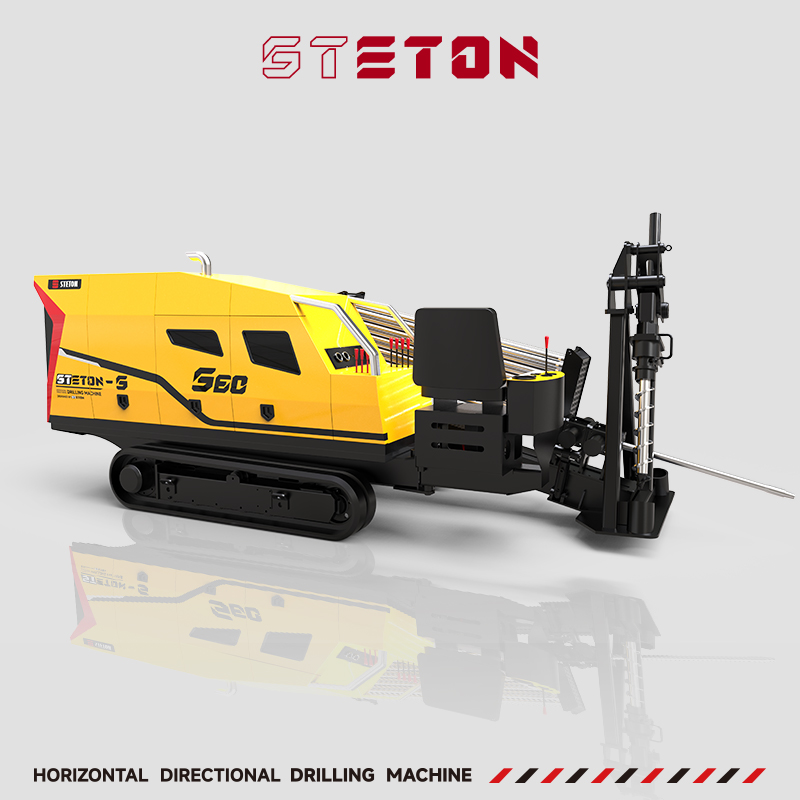

S60 HORIZONTAL DIRECTIONAL DRILLING MACHINE

Availability:
Quantity:
  • S60

  • 思特通

Specification

Engine Power KW 46.3/2200 Size(L*W*H) mm 3850x1424x1550

Max Thrust force

KN 60 Weight T 3.5

Max Pullback force

KN 60

Diameter of drilling rod

mm φ 42

Max Torque

N.M 2000

Length of drilling rod

m 1.8

Max Rotary speed

rpm 180

Max diameter of pullback pipe

mm φ 150~φ600(Soil Depended)

Max Moving speed of power head

m/min 45

Max construction length

m ~100

Max Mud pump flow

L/min 75

Incidence Angle

° 11~20

Max Mud pressure

Mpa 6±0.5

Climbing Angle

° 15


Main Performance Characteristics

1. The imported Japanese Yanmar engine can provide sufficient power support to ensure the stability of machine performance. The low fuel consumption and low noise are more suitable for urban construction.

2.The power head rotation is driven by the American high-torque Eaton motor, which is stable in performance and achieves infinitely variable speed. The push-pull motor also adopts the American Eaton motor to achieve stepless variable speed, and the machine's work speed is far ahead in trenchless industry.

3.Drill pipe φ 42*1800mm allows the machine to occupy smaller construction space. The drill rod box capacity is 40pcs.

4.The machine structure is simple in design, with low failure rate and easy maintenance.

5.The load-sensitive control system and internationally advanced hydraulic components are adopted for the rotation and push & pull motors. The independent cooling system ensures high-efficiency construction and more reliable performance.
