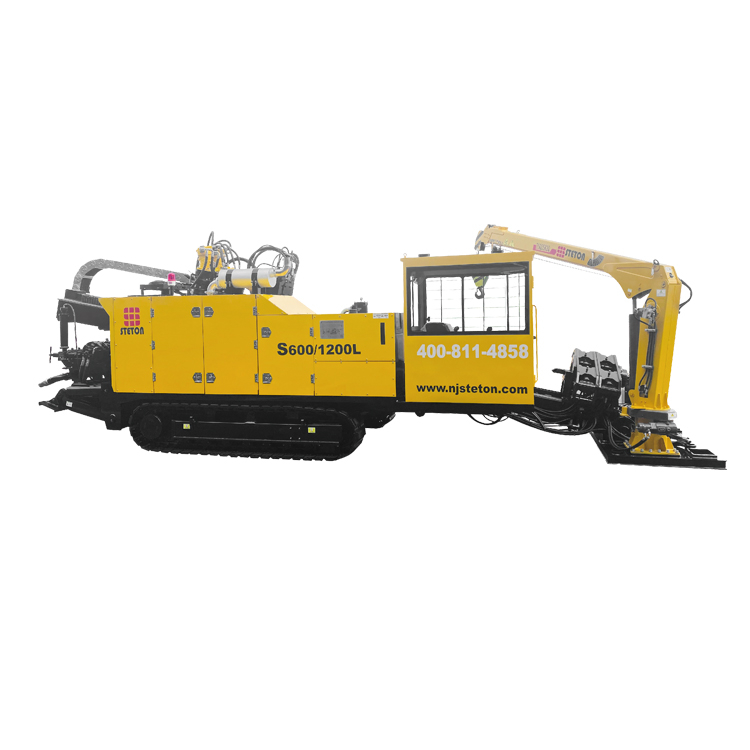

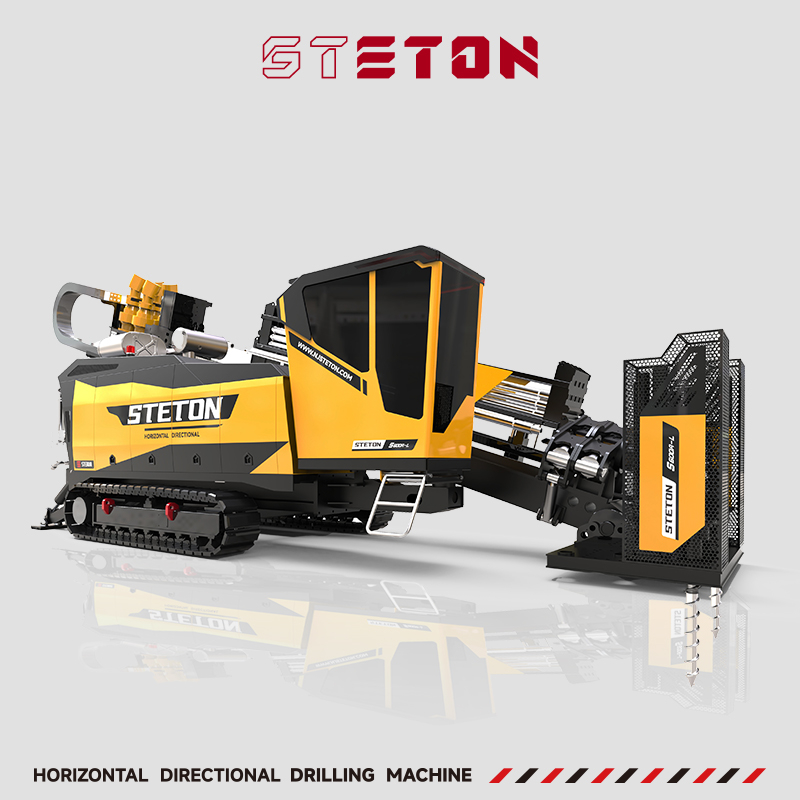

S600L HORIZONTAL DIRECTIONAL DRILLING MACHINE

Availability:
Quantity:

Specification

Engine Power

KW

194/2200

Size(L*W*H)

mm

9600x2300x2480

Max Thrust force

KN

600/1200

Weight T 15

Max Pullback force

KN

600/1200

Diameter of drilling rod

mm φ 89

Max Torque

N.M

27000

Length of drilling rod

m 4.5

Max Rotary speed

rpm 120

Max diameter of pullback pipe

mm φ 1500(Soil Depended)

Max Moving speed of power head

m/min 48

Max construction length

m 800(Soil Depended)

Max Mud pump flow

L/min 600

Incidence Angle

° 11~20

Max Mud pressure

Mpa 10±0.5

Climbing Angle

° 14


Main Performance Characteristics


1. Close-circuit system is adopted for rotation and push& pull both, which increases work efficiency by 15%-20%, and totally saves 15%- 20% energy compared with traditional system.

2. Rotation use Poclain motors, realizing more stable and reliable control and quicker response.

3.It is equipped with Cummins engine specialized in engineering machinery with strong power.

4. Four bar linkage luffing structure is adopted for main girder , which highly increases entry angle range and ensures the large angle and rig tracks are not off ground,improving the safety performance.

5. Wireless walking system ensures the safety for walk and transfer, angle range and ensures the large angle and rig tracks are not off ground, improving the safety performance.

6. Newly developed reversible manipulator is convenient for loading and unloading drill rod. which can greatly reduce the workers labor intensity and improve work efficiency.

7. Applicable for φ 89x4500mm drill rod, the machine fits moderate field area, meeting the requirement for high efficiency construction in small downtown district.

8. Main hydraulic components are from the international first-class hydraulic components manufacturer, which can greatly improve the reliability of the product performance and safety.

9. Electric design is reasonable with low failure rate, which is easy to maintain.

10. Rack & pinion model is adopted for push & pull, which ensures high efficiency, stable work and convenient maintenance.

11.Steel track with rubber plate can be loaded heavily and walk on all kinds of roads.
