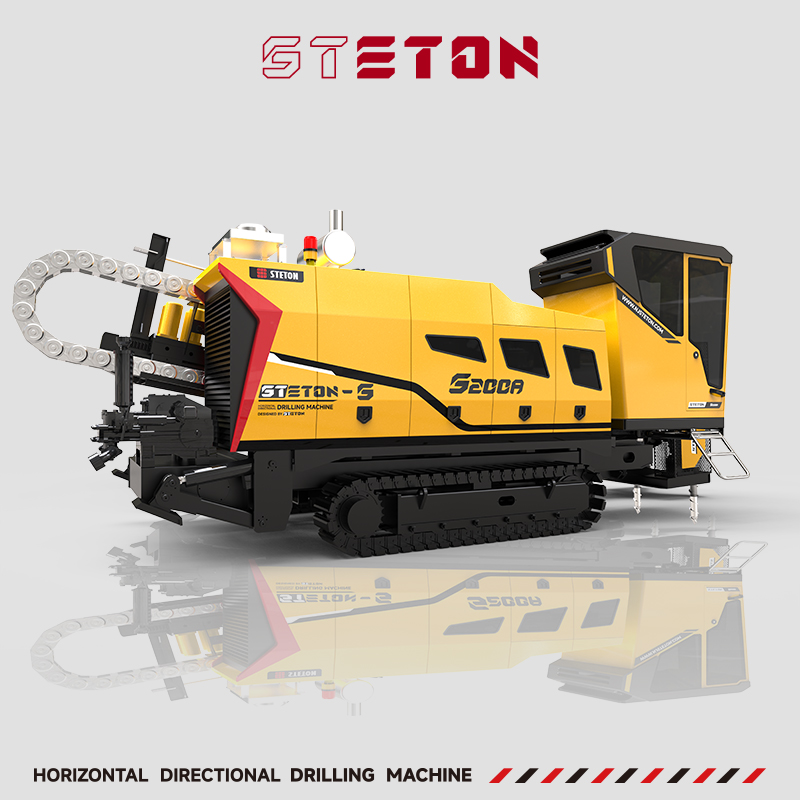

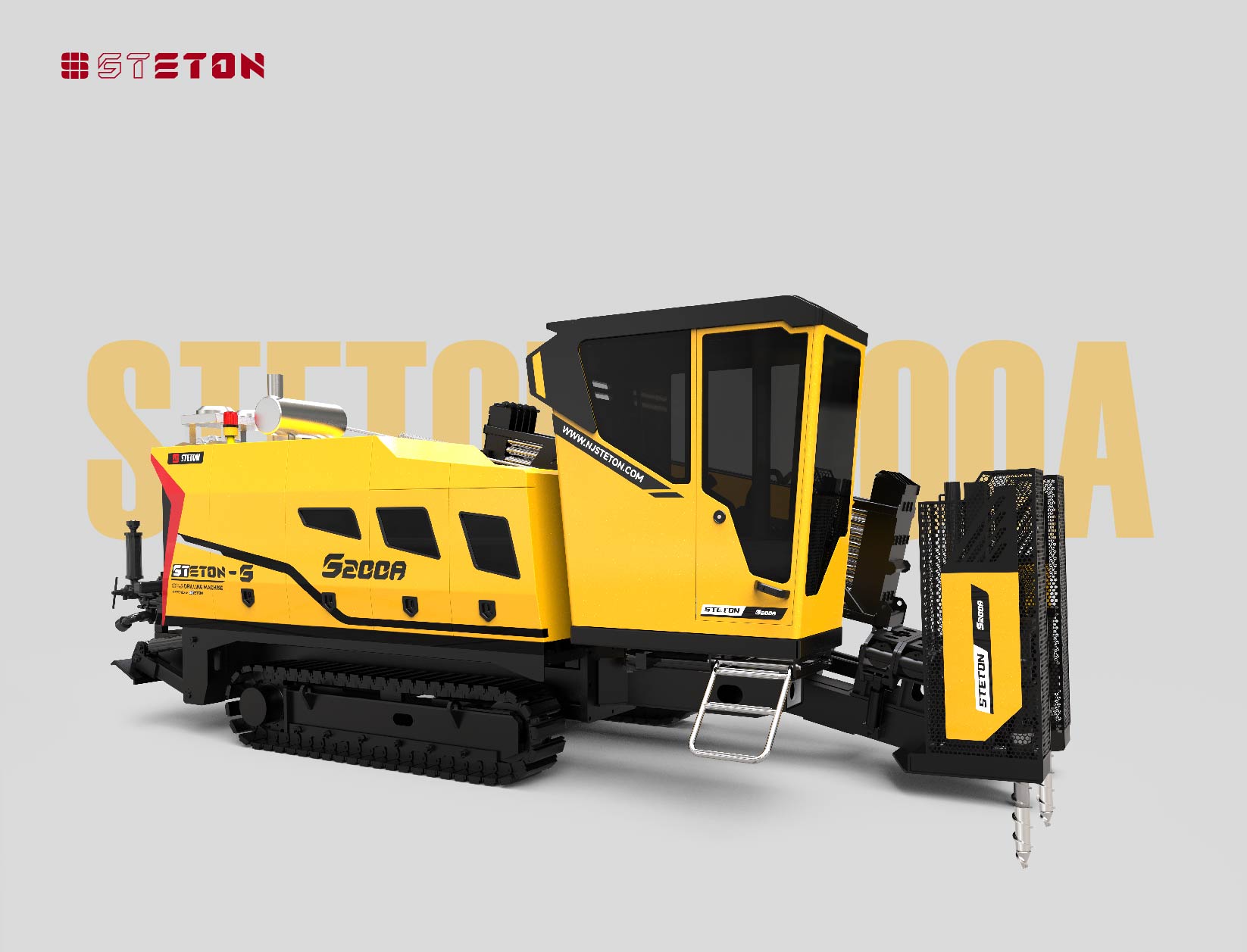

S200 HORIZONTAL DIRECTIONAL DRILLING MACHINE

Availability:
Quantity:
  • S200

  • 思特通

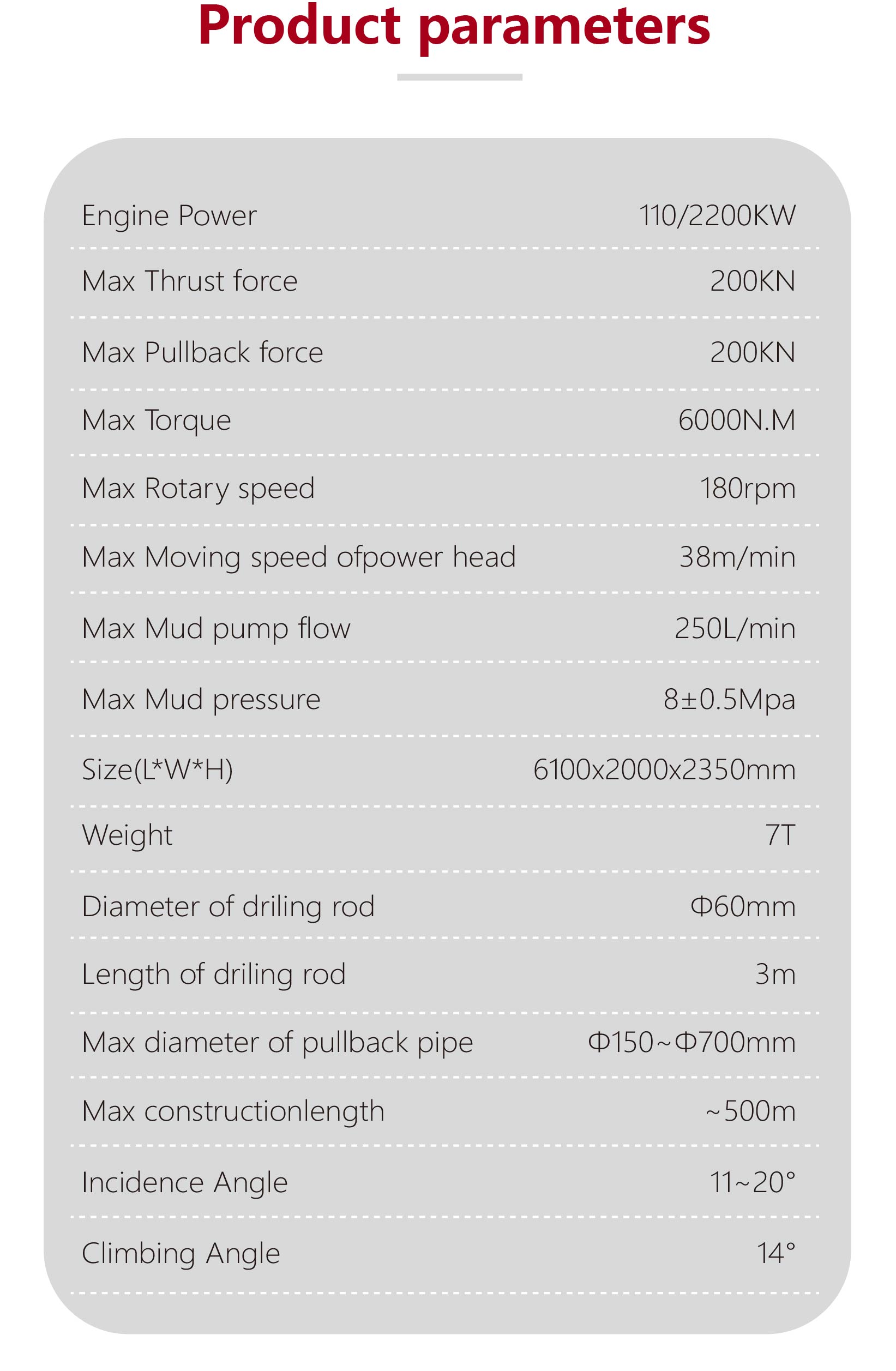

Specification

Engine Power KW

110/2200

Size(L*W*H) mm

5880x1720x2150

Max Thrust force

KN

200

Weight T 7

Max Pullback force

KN

200

Diameter of drilling rod

mm φ 60

Max Torque

N.M

6000

Length of drilling rod

m 1.8

Max Rotary speed

rpm 180

Max diameter of pullback pipe

mm φ 150~φ700(Soil Depended)

Max Moving speed of power head

m/min 38

Max construction length

m ~500

Max Mud pump flow

L/min 250

Incidence Angle

° 11~20

Max Mud pressure

Mpa 8±0.5

Climbing Angle

° 14


Main Performance Characteristics

1. The machine is equipped with Cummins engine, with high efficiency, large power, low fuel consumption, low noise, strong ability in construction.

2. Rotation adopts American Eaton large torque motor driving directly, with large torque, stable performance, and two gears speed regulation. Push & pull adopts American Eaton motor and three gears speed regulation. The Construction speed is far ahead of other manufactures in the same industry. Driving head reserves reinforced power -push & pull force, which expands the scope of drilling construction.

3. It is equipped with hydraulic gear pump with military technology. Steel track walks by wire-control, which is convenient for load & unload and transfer.

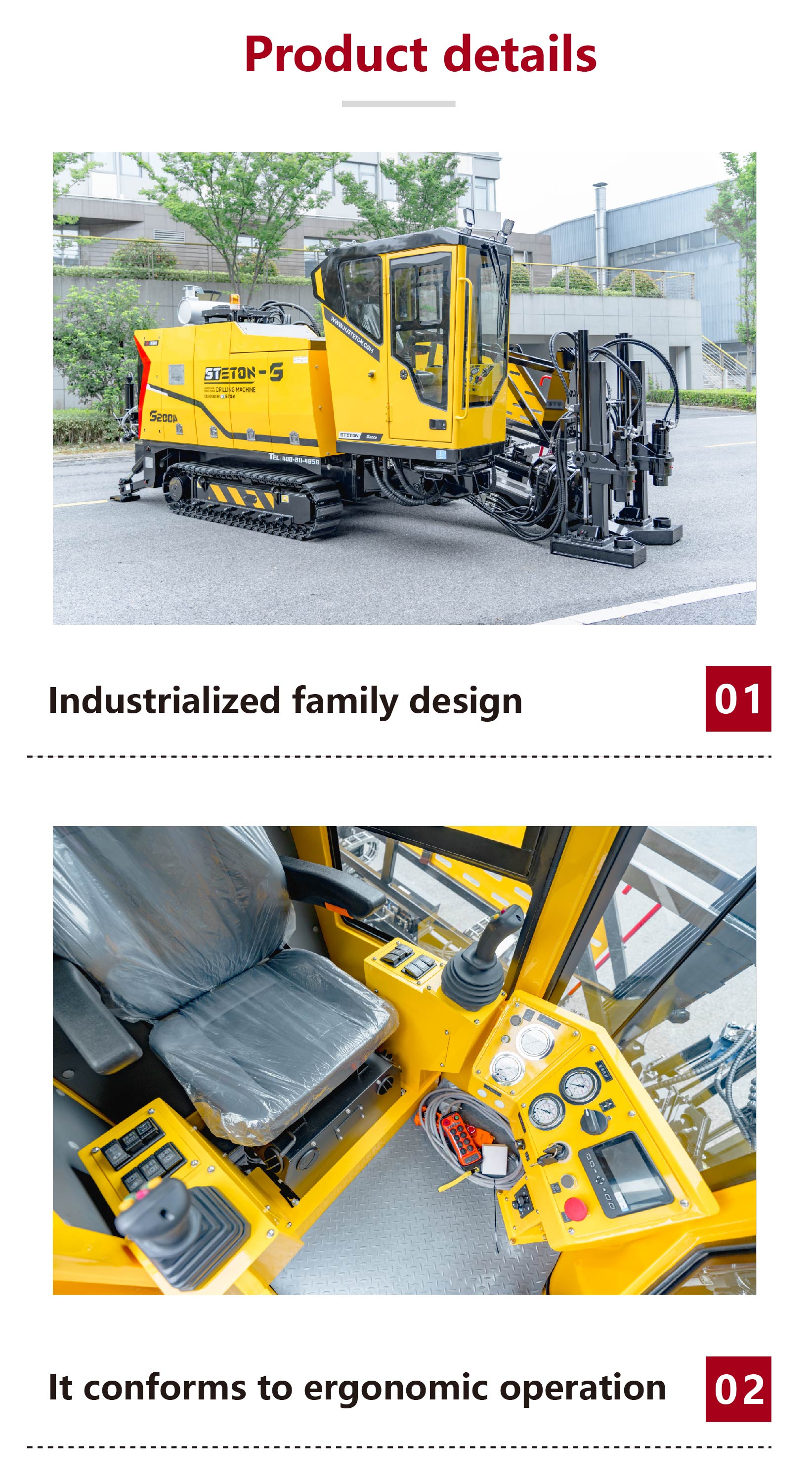

4. Operation table is designed ergonomically, which is comfortable for operation, and can greatly reduce workers fatigue level.

5. Equipped with φ60x3000mm drill rod, the machine occupies less field area, meeting the requirement for high efficiency construction in small place.

6. Electric design is reasonable with low failure rate, which is easy to maintain.

7.Beautiful and generous, easy to repair, which fully shows "people-oriented" design vision.

200A

微信图片_20190625000038微信图片_20190625000025微信图片_20190625000043
