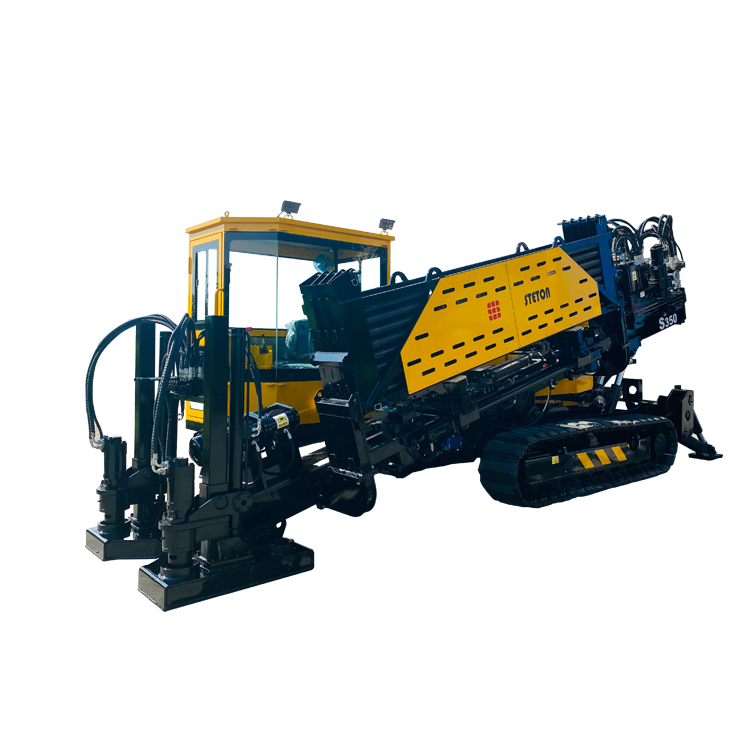

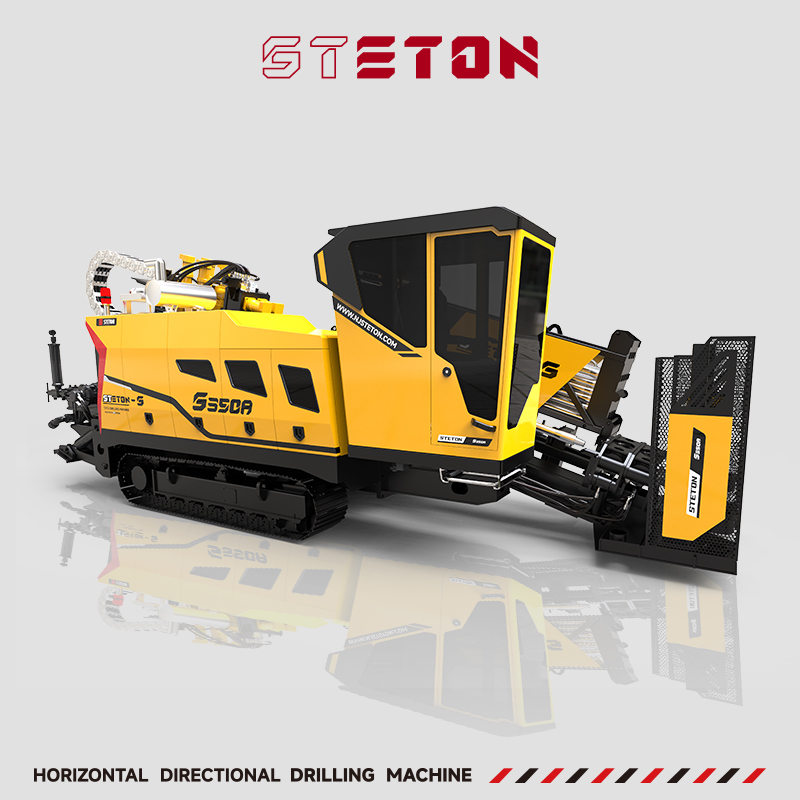

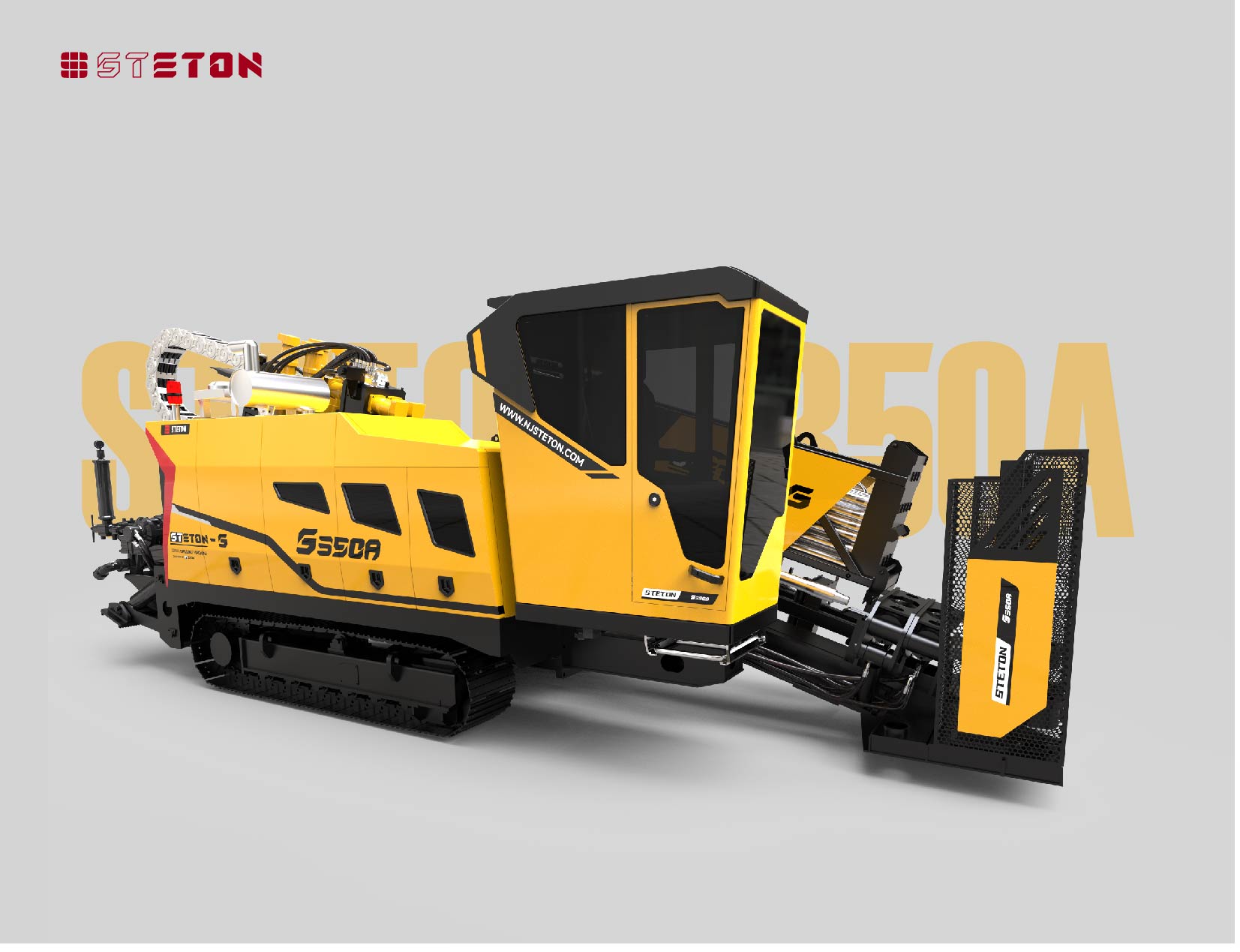

S350 HORIZONTAL DIRECTIONAL DRILLING MACHINE

Availability:
Quantity:
  • S350

  • 思特通

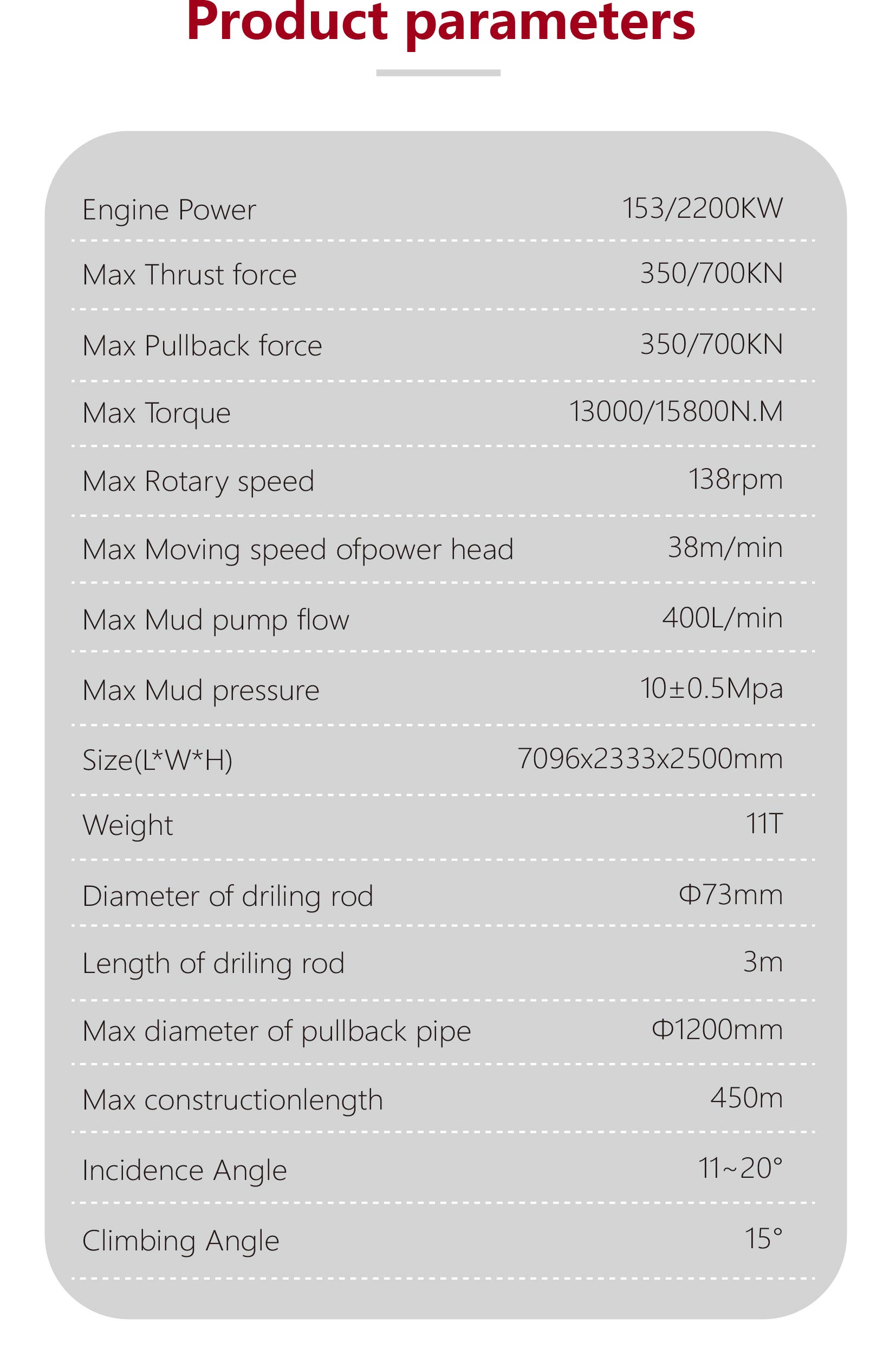

Specification


Engine Power KW

153/2200

Size(L*W*H) mm

6800x2240x2260

Max Thrust force

KN

350/700

Weight T 11

Max Pullback force

KN

350/700

Diameter of drilling rod

mm φ 73

Max Torque

N.M

13000/15000

Length of drilling rod

m 3

Max Rotary speed

rpm

138

Max diameter of pullback pipe

mm φ 1200(Soil Depended)

Max Moving speed of power head

m/min 38

Max construction length

m 450(Soil Depended)

Max Mud pump flow

L/min 400

Incidence Angle

° 11~20

Max Mud pressure

Mpa 10±0.5

Climbing Angle

° 15


Main Performance Characteristics

1 .The machine is equipped with Cummins engine with high efficiency, large power, low fuel consumption, low noise, and strong ability in construction.

2.lt is equipped with PERMCO hydraulic gear pump. Push & pull and rotation hydraulic system adopt advanced series-parallel control technology and the international first-class hydraulic components with high efficiency, low consumption and high stability.

3. The machine is equipped with rotation and push & pull pilot control, and the operation is more portable.

4. The power head rotation is driven by the American high-torque Eaton motor, which is stable in performance and achieves infinitely variable speed. Push & pull adopts American Eaton motor and three gears speed regulation.

5. Driving head reserves reinforced power - push & pull force, which expands the scope of drilling construction, and makes it convenient for emergency project.

6.lt is equipped with first-class walking hydraulic driving device. Steel track walking is driven by wire-control, which is convenient for loading & unloading and transferring.

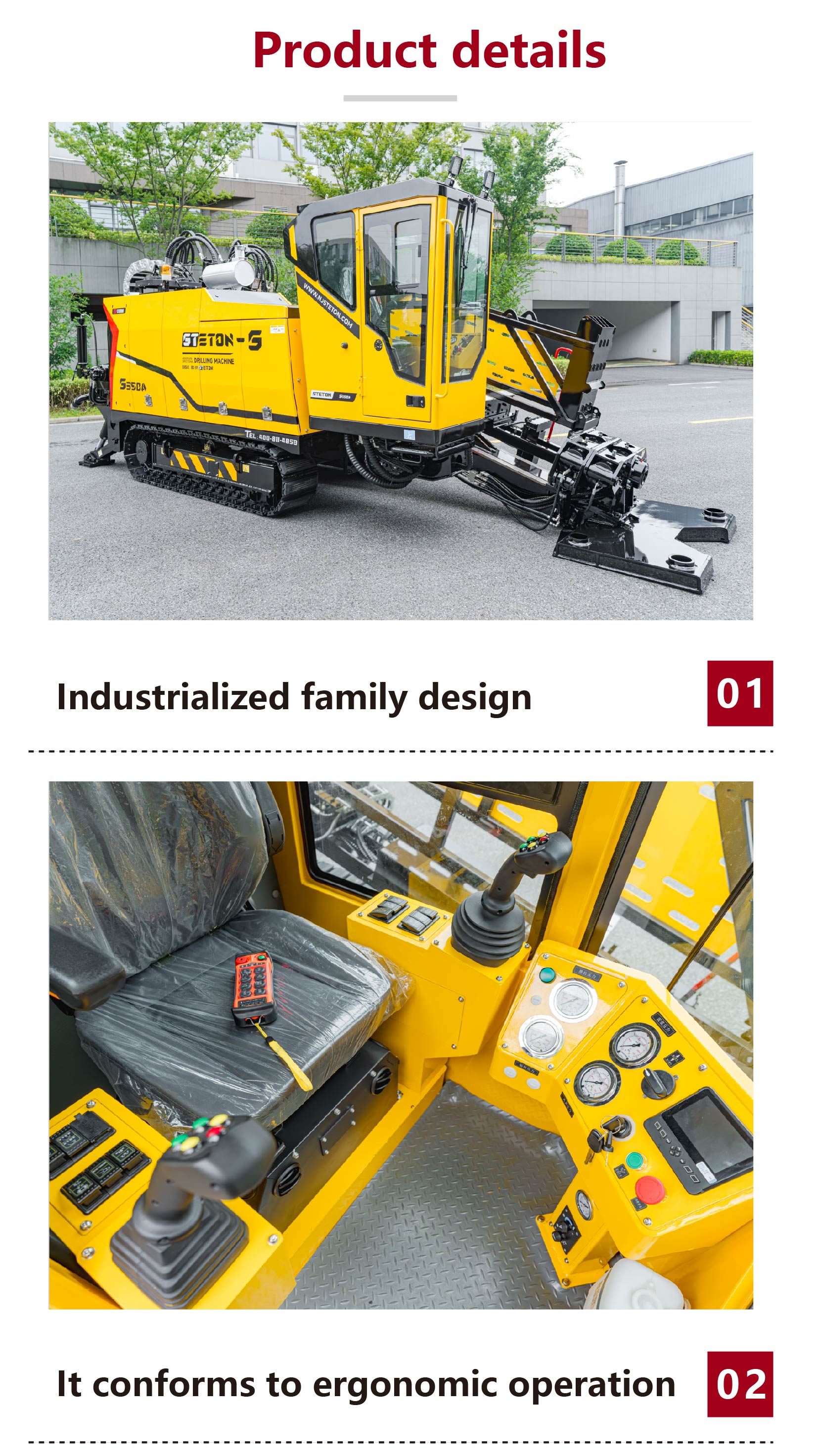

7. Operation table is designed ergonomically, which is comfortable for operation, and can greatly reduce workers fatigue level. The rotating cab is optional, with AC, broad vision, and comfortable seat.

8. Equipped with drill rod φ73x3000 mm , the machine occupies medium field area, meeting the requirement for high efficiency construction in small place.

9. Electric design is reasonable with low failure rate, which is easy to maintain.

10.Streamlined appearance design, beautiful and generous, and easy to repair, which fully shows "people-oriented" design vision.

11. Advanced design concept, and efficiency of construction has been improved by 30%. It is far ahead of other manufactures in trenchless industry.

12. Humanization design: The mechanical arm can greatly improve working efficiency and reduce working intensity. And the clients can choose cab (with air-condition), auto rod-loading box, auto anchor, auto thread oil machine etc.


350A

微信图片_20220706150407微信图片_20220706150433微信图片_20220706150453微信图片_20220706150438
