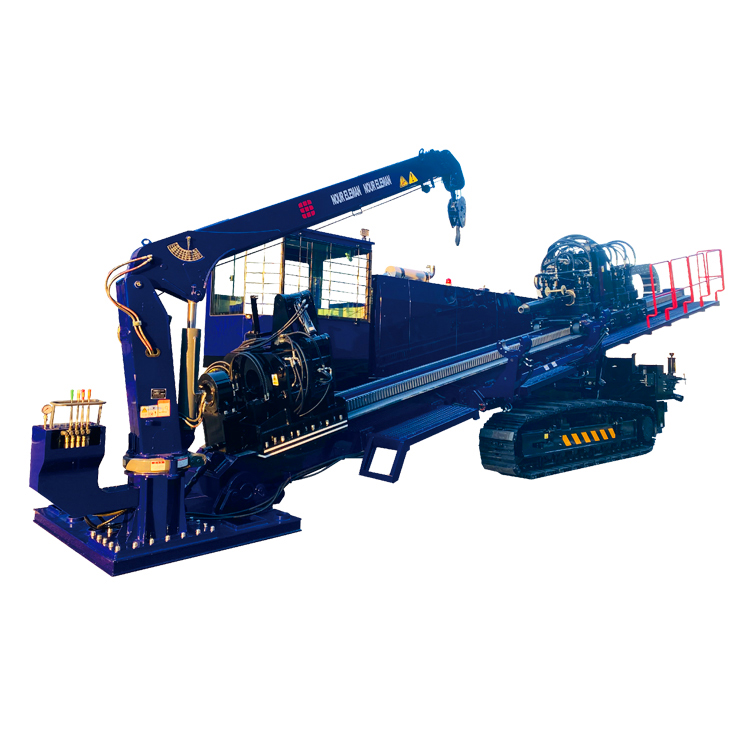

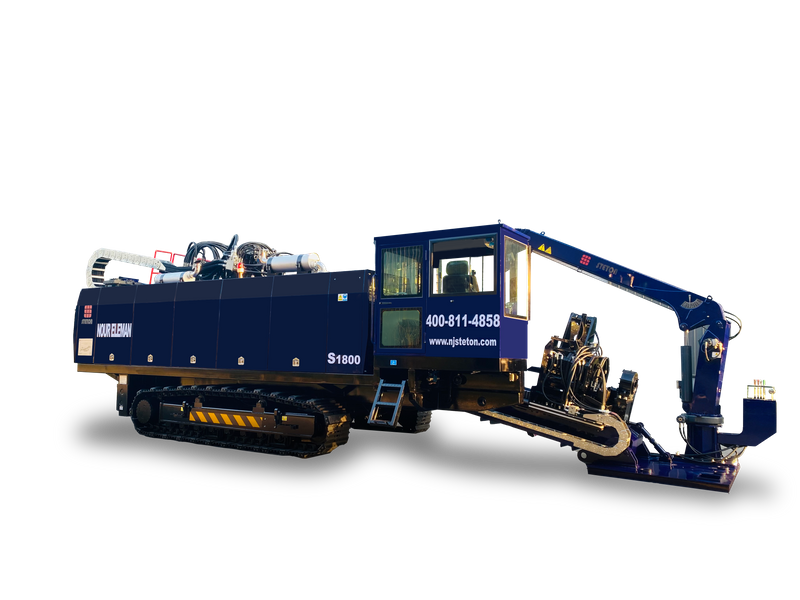

S1800 HORIZONTAL DIRECTIONAL DRILLING MACHINE

Availability:
Quantity:
  • S1800

  • 思特通

Specification

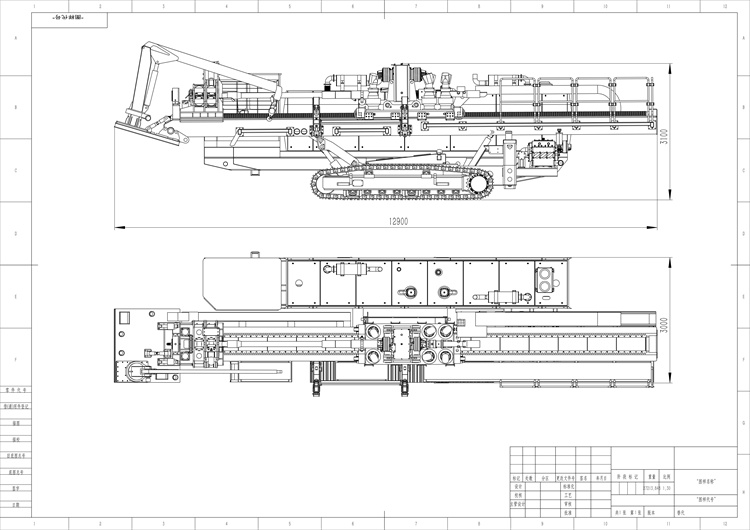

Engine Power KW 2*242/2200 Size(L*W*H) mm 12900x3000x3100

Max Thrust force

KN 1800/2400 Weight T 33

Max Pullback force

KN 1800/2400

Diameter of drilling rod

mm φ 127

Max Torque

N.M 78000

Length of drilling rod

m 6

Max Rotary speed

rpm 100

Max diameter of pullback pipe

mm φ 1500(Soil Depended)

Max Moving speed of power head

m/min 35

Max construction length

m 1500(Soil Depended)

Max Mud pump flow

L/min 1000

Incidence Angle

° 11~22

Max Mud pressure

Mpa 10±0.5

Climbing Angle

° 15


Main Performance Characteristics

1 .The rotation and thrust is equipped with USA Sauer closed-circuit system, which is efficient, stable and reliable. Rotation motor is originally imported French Poclain brand which is famous all over the world, and push &pull motor is Germany Rexroth and which increases work efficiency more than 20%, and totally saves about 20% energy compared with traditional system.

2.Hydraulic control is adopted for rotation and push & pull, reducing the faults resulted from the aging of electrical components, realizing more stable and reliable control and quicker response.

3. It is equipped with two Cummins engine specialized in engineering machinery with strong power.

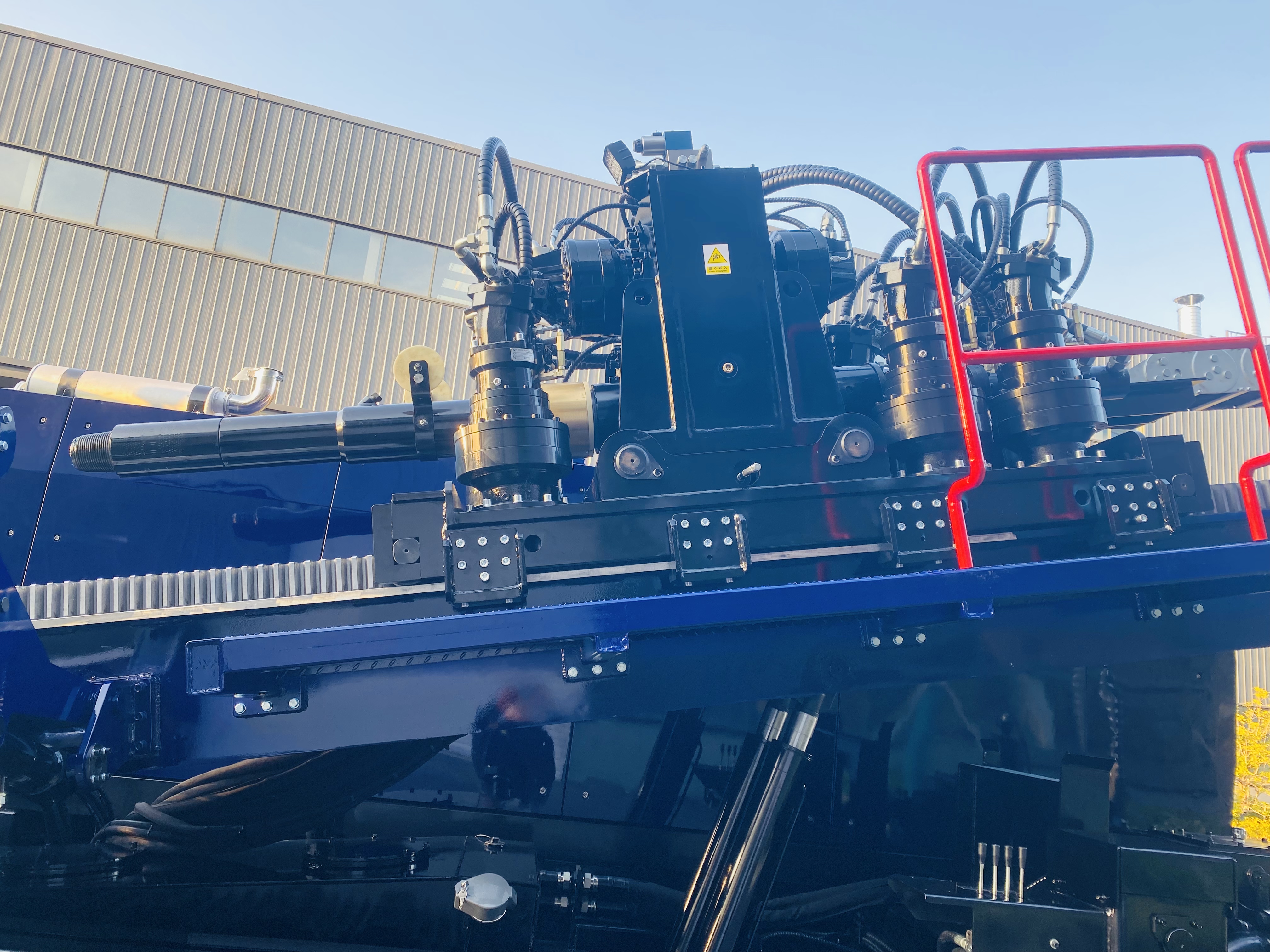

4. Driving head reserves reinforced power (push & pull force). Push & pull force can be increased to 2400KN, which ensures the safety of the big diameter construction

5. Four bar linkage luffing structure is adopted for main girder, which highly increases entry angle range and ensures the large angle and rig tracks are not off ground, having improved the safety performance.

6. Wireless-control walking system can be used to ensure the safety in the process of walk, transfer and load & unload.

7. Full lifted manipulator is convenient for loading and unloading drill rod, which can greatly reduce the workers labor intensity, and improve work efficiency.

8. With φ127x6000mm drill rod, the machine can be used in medium field area, meeting the requirement for high efficiency construction in small place.

9. Main hydraulic components are from the international first-class hydraulic component manufacturer, which greatly improve the reliability of the product performance and safety.

10. Electric design is reasonable with low failure rate, which is easy to maintain.

11.Push & pull using rack and pinion structure, which is good for high efficiency, long lifespan, stable work, and maintenance is also convenient.

12.Steel track with rubber plate can be loaded heavily and walks on all kinds of roads as well.


S1800

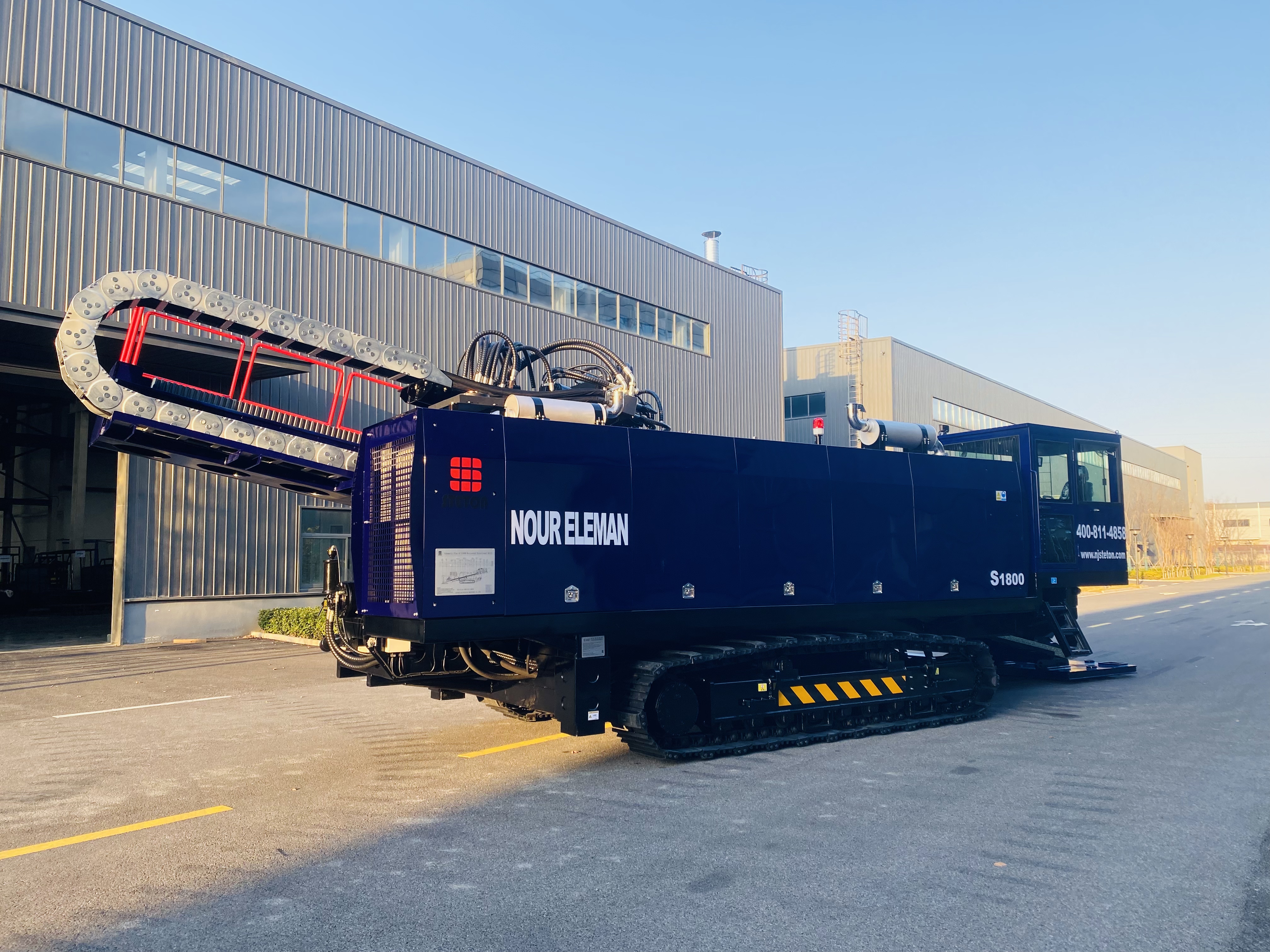

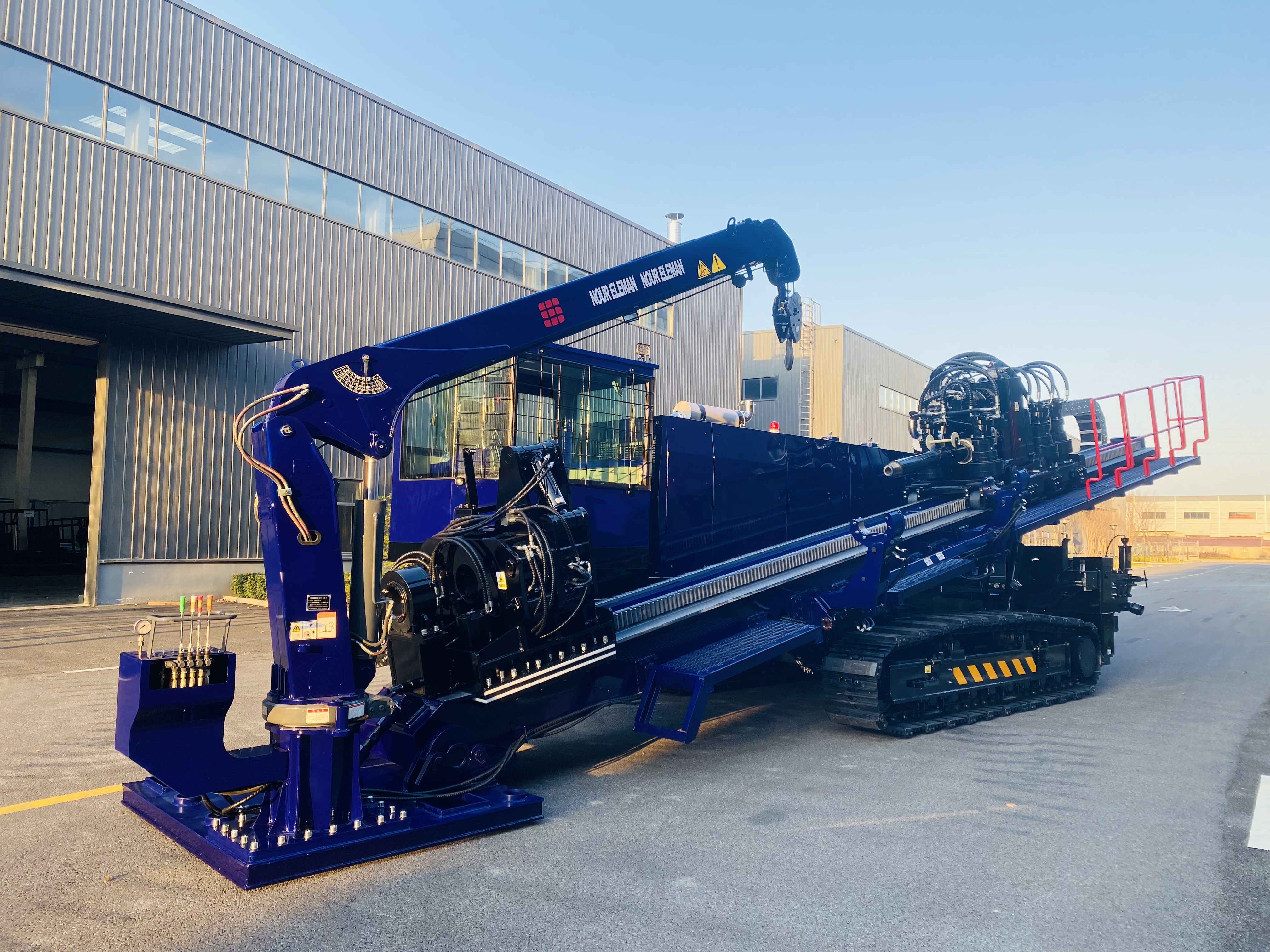

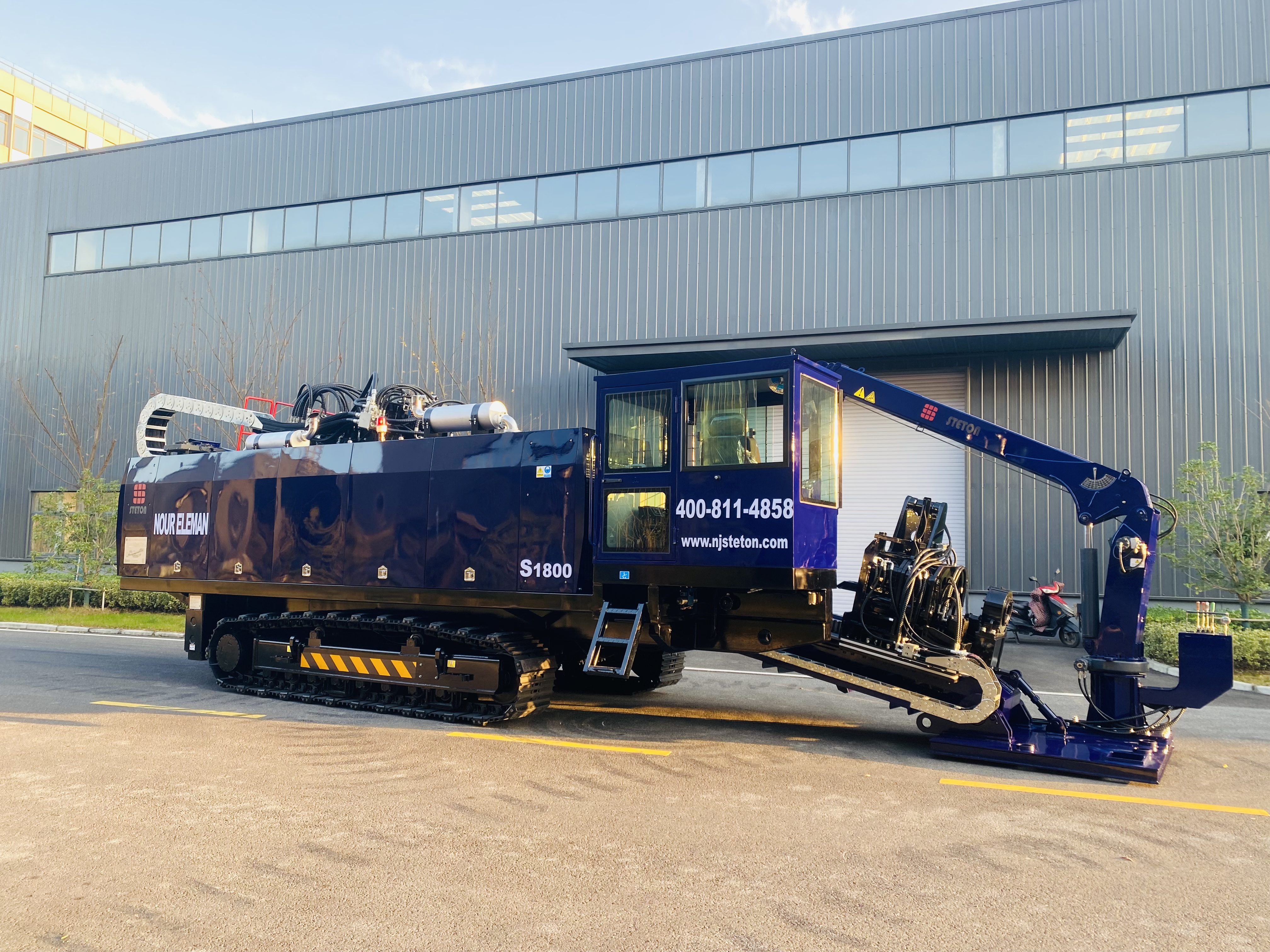

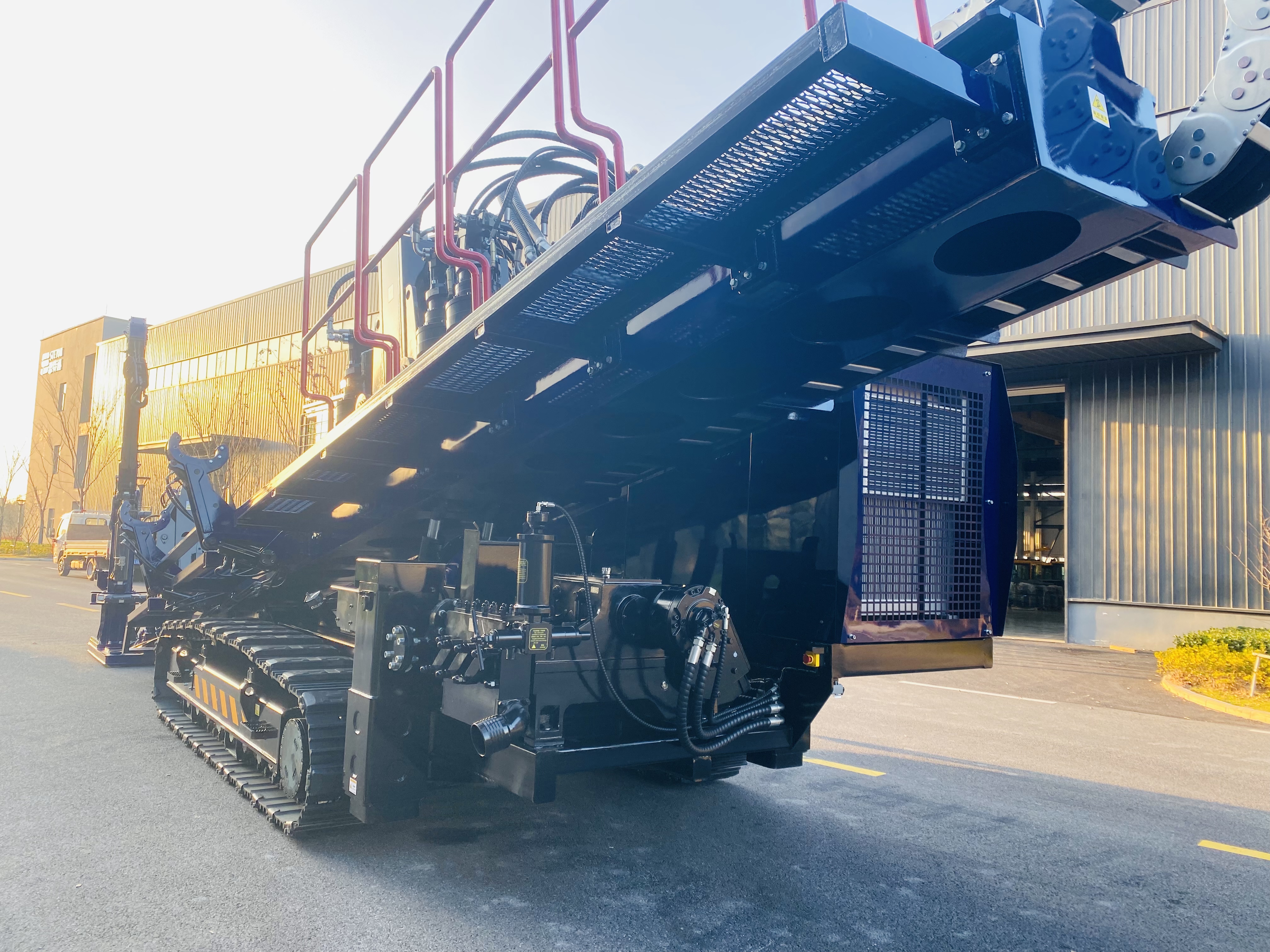

微信图片_20220706152536微信图片_20220706152549微信图片_20220706152601微信图片_20220706152557微信图片_20220706152634
